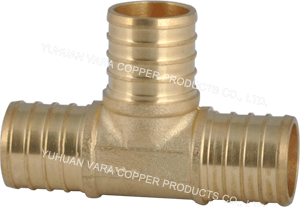

PEX FITTING BRASS TEE (BARB x BARB x BARB)
| Back |
|
 |
|
|
Description
Pex Fitting Brass Tee (Barb x Barb x Barb)
Forged brass body
Insert for fittings conform to F1807
Fittings with soldering or brazing end comform to ANSI B16.22
NPT Male Thread , NPSM Female Thread
Thread conform to ANSI/ASME B1.20.1
Designed for residential use with water, oil or air
SPEC.
|
ITEM
|
SIZE
|
INN/MAS
|
|
20901
|
3/8"PEX x 3/8"PEX x 3/8"PEX
|
50/500
|
|
20902
|
1/2"PEX x 1/2"PEX x 1/2"PEX
|
50/500
|
|
20903
|
3/4"PEX x 3/4"PEX x 3/4"PEX
|
25/250
|
|
20904
|
1/2"PEX x 3/8"PEX x 3/8"PEX
|
50/500
|
|
20905
|
1/2"PEX x 1/2"PEX x 3/4"PEX
|
25/250
|
|
20906
|
3/4"PEX x 1/2"PEX x 3/4"PEX
|
25/250
|
|
20907
|
3/4"PEX x 3/4"PEX x 1/2"PEX
|
25/250
|
|
20908
|
3/4"PEX x 1/2"PEX x 1/2"PEX
|
25/250
|
|
20909
|
1"PEX x 1"PEX x 1"PEX
|
25/100
|
|
20910
|
3/4"PEX x 3/4"PEX x 1"PEX
|
25/100
|
|
20911
|
1"PEX x 3/4"PEX x 1/2"PEX
|
25/100
|
|
20912
|
1"PEX x 3/4"PEX x 3/4"PEX
|
25/100
|
|
20913
|
1"PEX x 1"PEX x 1/2"PEX
|
25/100
|
|
20914
|
1"PEX x 1"PEX x 3/4"PEX
|
25/100
|
