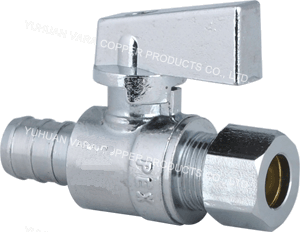

PEX x O.D. COMP STRAIGHT VALVE 1/4 TURN

Description

PEX x O.D. comp straight valve 1/4 turn
Forged brass body
Maximum working pressure: 125PSI
Temperature range: -20 F to 200 F (-10 to 95)
Double “O” ring seal
surface chrome plated
Solder ends comply with ANSI B16.18
Thread ends comply with ANSI BI. 20.1
PEX ends designed to ASTM F-1807
Designed for residential use with water, oil or air

SPEC.

ITEM

SIZE

INN/MAS

810-01

1/2"P x 1/4"O.D.Comp.

25/200

810-02

1/2"P x 3/8"O.D.Comp.

25/200

810-03

1/2"P x 1/2"O.D.Comp.

25/200

810-08

3/8"P x 3/8"O.D.Comp.

25/200
